Channel Flow Non-steady Temperature
See description at EarthBox.BenchmarksManager.run_benchmark.
This benchmark can be run with the following code:
using EarthBox
BenchmarksManager.run_benchmark(:channel_flow_non_steady_temperature);Output will be sent to a directory in the present working directory. Output will also be sent to the terminal indicating the result of the benchmark and where to find output files.
Max difference (num-ana): 4.86148
Max relative error: 0.658 %
Max relative error limit: 0.700 %
Test Successful: max relative error is not greater than limit: 0.658% <= 0.700%
Look at the following path for benchmark plots: .../earthbox_benchmark_results_2025-11-15_16-39-32/channel_flow_non_steady_temperature_output

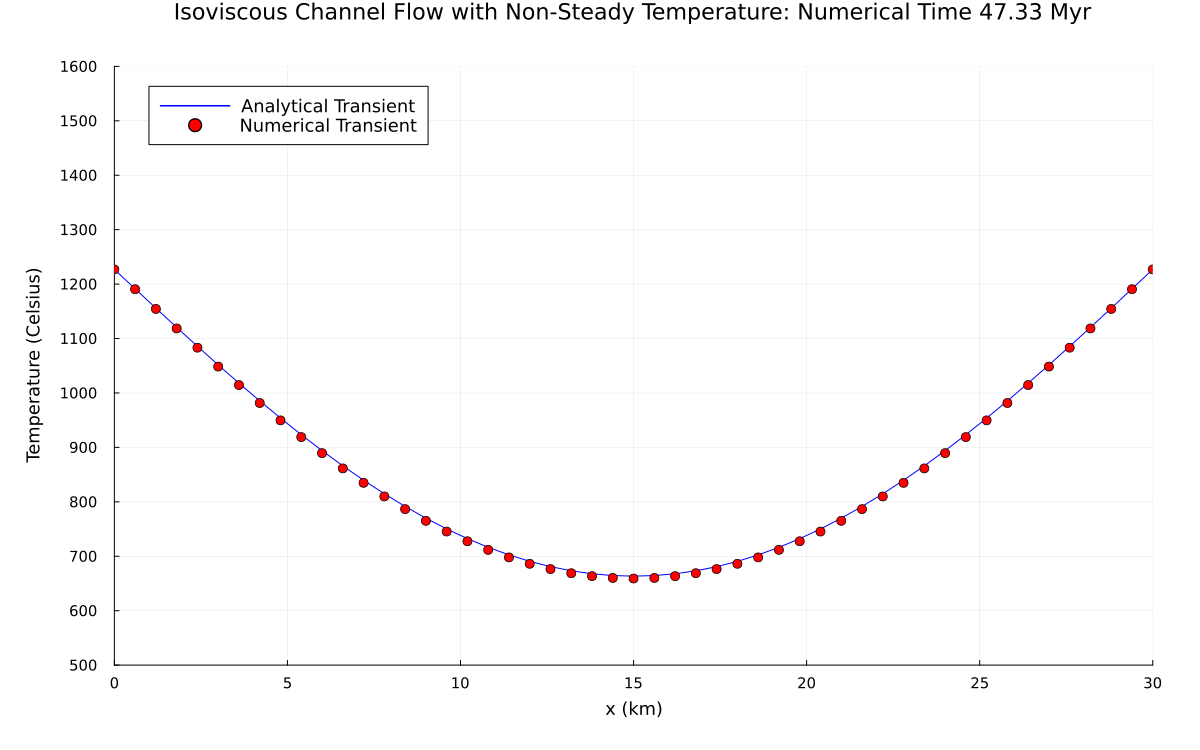

fig:channel-flow-non-steady-temperature
Benchmark result using EarthBox version 0.1.0
