Seafloor Spreading

See description at EarthBox.BenchmarksManager.run_benchmark.

This benchmark can be run with the following code:

using EarthBox
BenchmarksManager.run_benchmark(:seafloor_spreading);

Output will be sent to a directory in the present working directory. Output will also be sent to the terminal indicating the result of the benchmark and where to find output files.

Average off-axis thickness of oceanic crust (Numerical): 7405.106679485966
Average thickness of oceanic crust (Target): 7000.0

Max difference (num-ana): 405.10668
Max relative error: 5.787 %
Max relative error limit: 6.000 %

Test Successful: max relative error is not greater than limit: 5.787% <= 6.000%

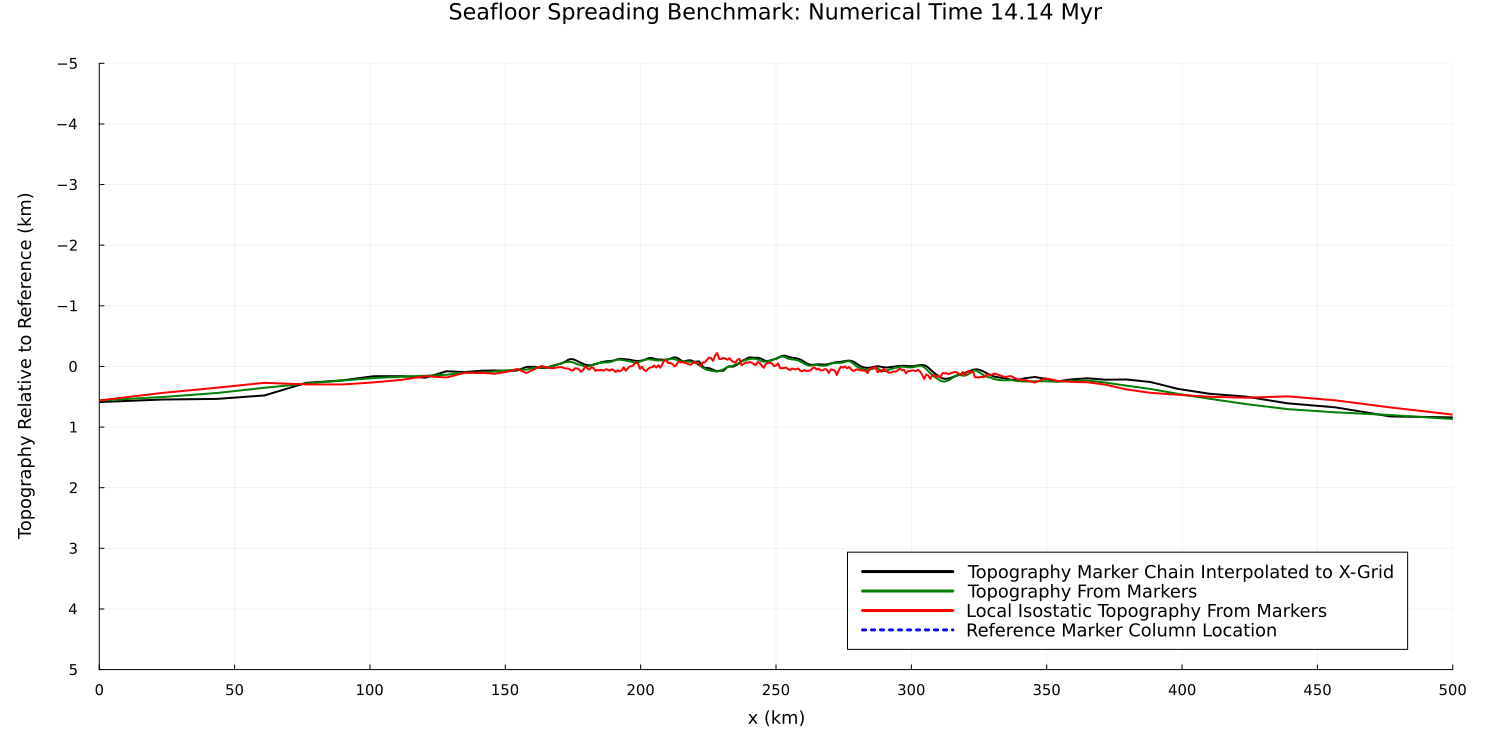

Seafloor Spreading Benchmark (Topography)

fig:seafloor-spreading-topography

Benchmark result for topography using EarthBox version 0.1.0

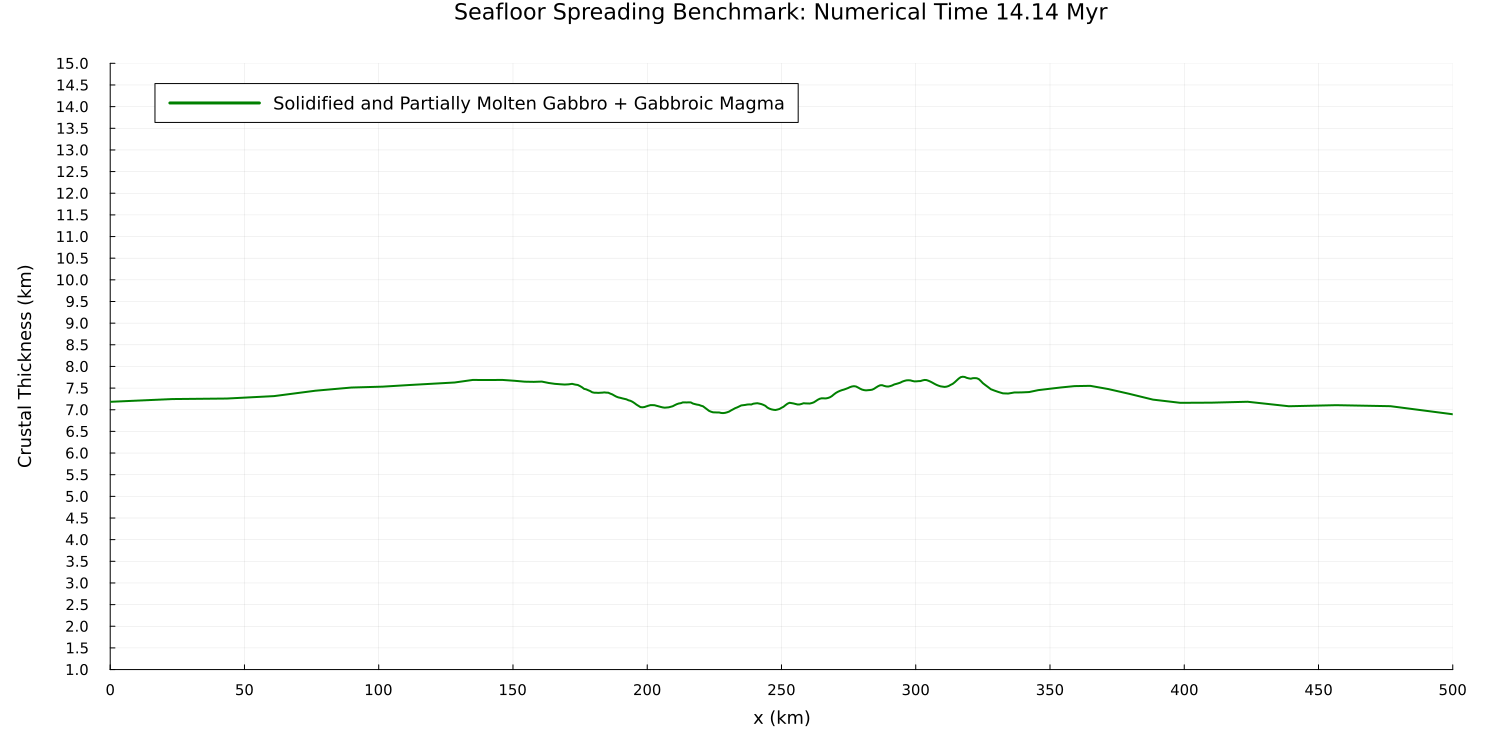

Seafloor Spreading Benchmark (Magmatic Crustal Thickness)

fig:seafloor-spreading-xth

Benchmark result for magmatic crustal thickness using EarthBox version 0.1.0
