Viscoelastic Extension

See description at EarthBox.BenchmarksManager.run_benchmark.

Symmetric

This benchmark can be run with the following code:

using EarthBox
BenchmarksManager.run_benchmark(:viscoelastic_extension);

From test_results.yml

relative error limit %: 3.0
max relative error percentage: 0.2764
message: "Test Successful: max relative error is not greater than limit: 0.276% <= 3.000%"
result: "Success"

fig:viscoelastic-extension

Benchmark result using EarthBox version 0.1.0

Asymmetric

This benchmark can be run with the following code:

using EarthBox
BenchmarksManager.run_benchmark(:viscoelastic_extension_asymmetric);

From test_results.yml

relative error limit %: 3.0
max relative error percentage: 0.2243
message: "Test Successful: max relative error is not greater than limit: 0.224% <= 3.000%"
result: "Success"

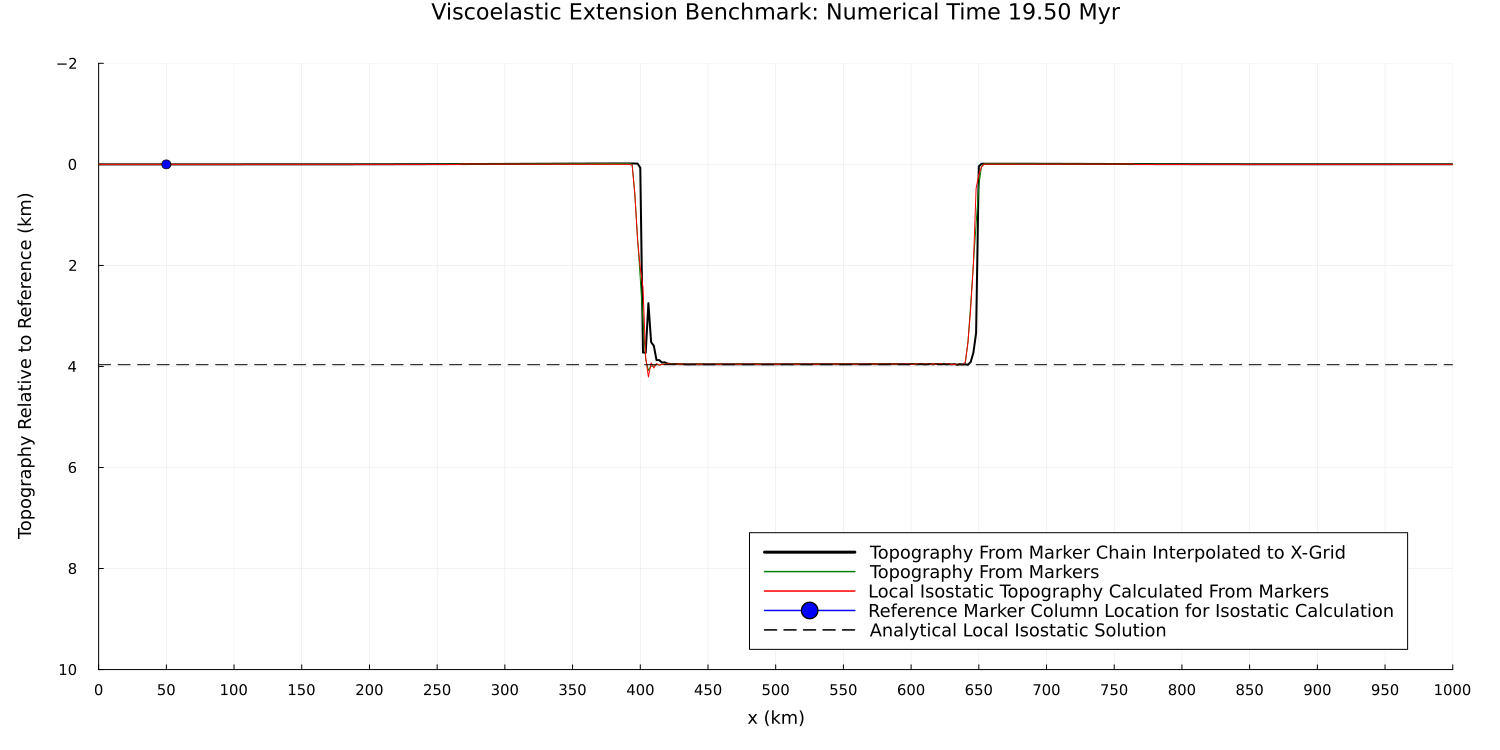

fig:viscoelastic-extension-asymmetric

Benchmark result using EarthBox version 0.1.0

Inflow and Outflow Along Side Boundaries

This benchmark can be run with the following code:

using EarthBox
BenchmarksManager.run_benchmark(:viscoelastic_extension_inflow_and_outflow_along_sides);

From test_results.yml

relative error limit %: 3.0
max relative error percentage: 0.5077
message: "Test Successful: max relative error is not greater than limit: 0.508% <= 3.000%"
result: "Success"

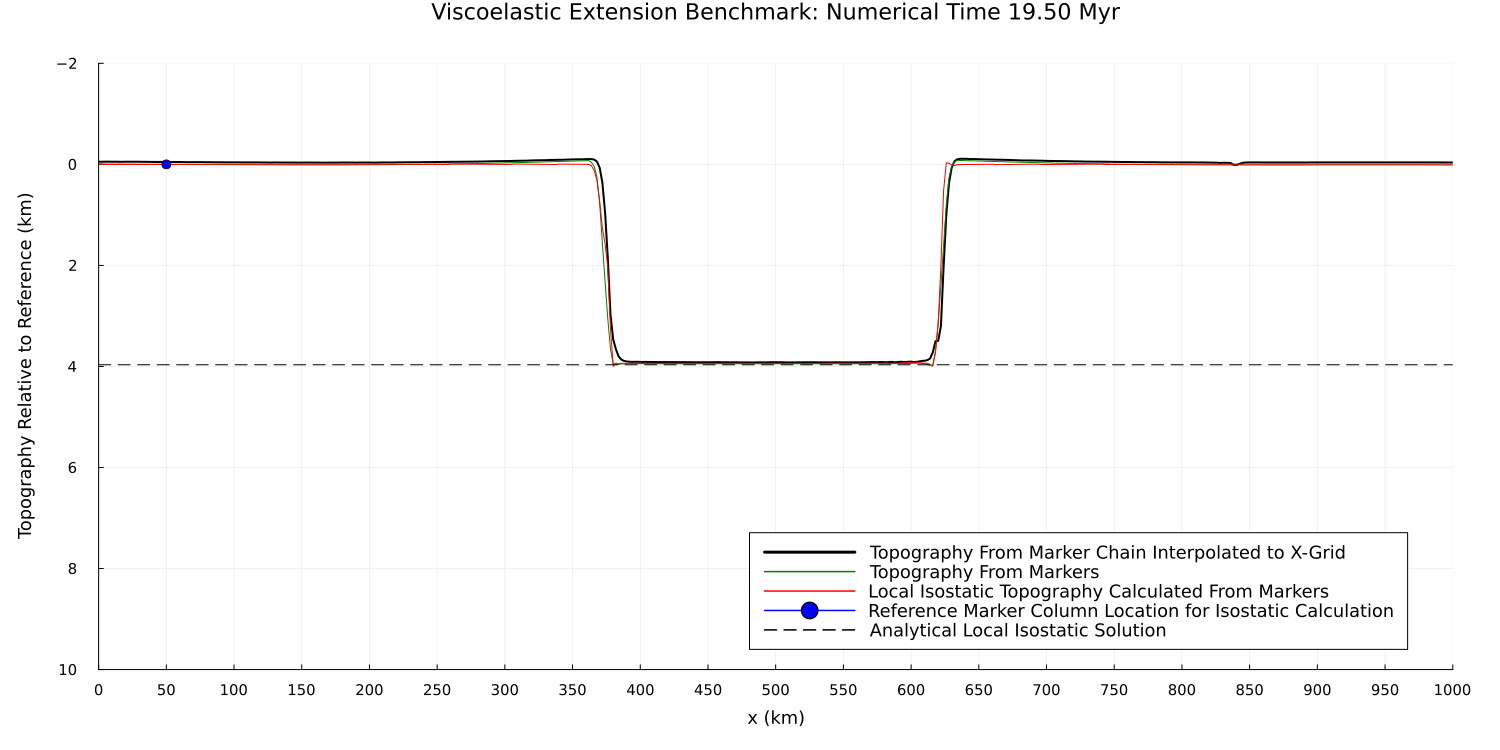

fig:viscoelastic-extension-inflow-outflow

Benchmark result using EarthBox version 0.1.0

Depth-dependent

This benchmark can be run with the following code:

using EarthBox
BenchmarksManager.run_benchmark(:viscoelastic_extension_depth_dependent);

From test_results.yml

relative error limit %: 3.0
max relative error percentage: 0.2744
message: "Test Successful: max relative error is not greater than limit: 0.274% <= 3.000%"
result: "Success"

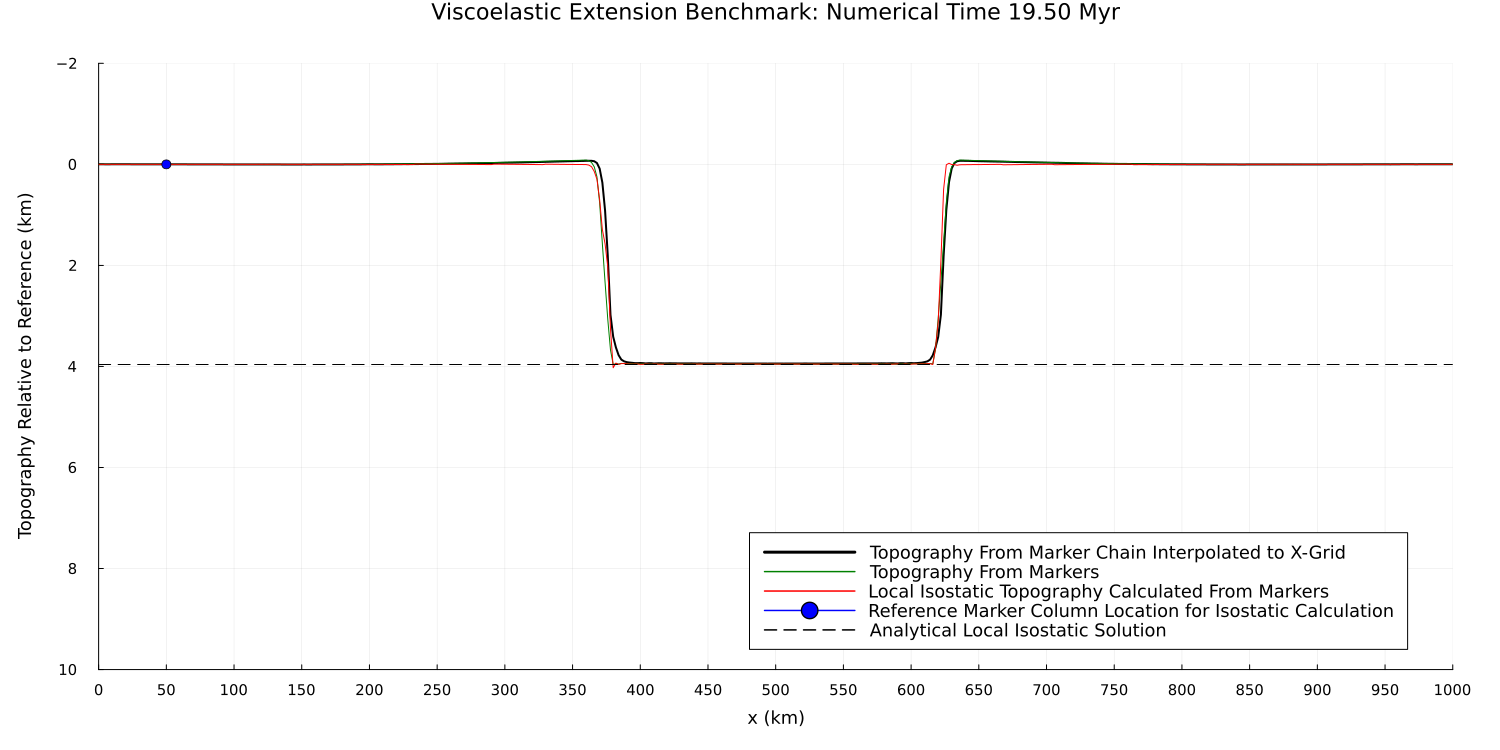

fig:viscoelastic-extension-depth-dependent

Benchmark result using EarthBox version 0.1.0
